Roof Load Bar Set 1345mm(W)

Roof Load Bar Set 1345mm(W)

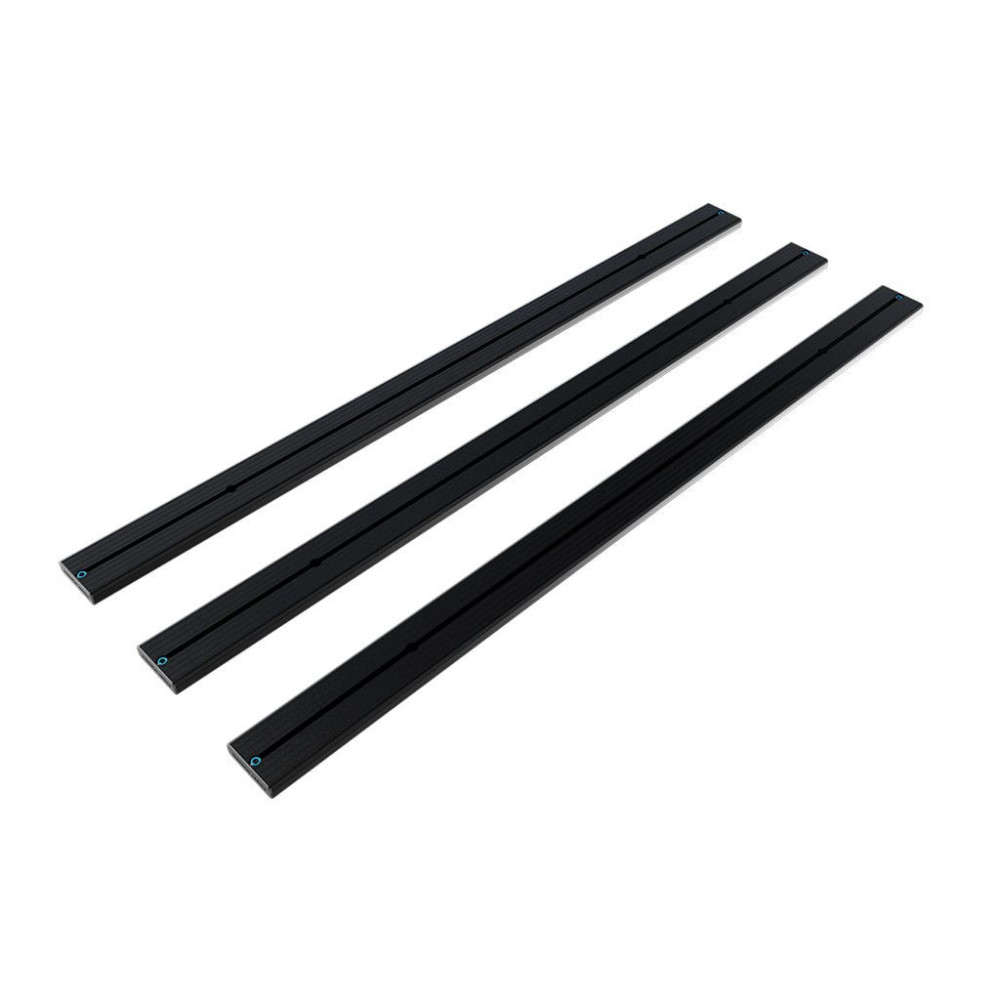

LBSK022 - Roof Load Bar Set 1345mm(W) Consisting of: 1x RRAC044 - Slat to Load Bar Conversion end Cap Kit1x RRAC181 - Slat to Load Bar Conversion end Cap3x RRSS1345 - 1345mm Slat Material Used: Black epoxy powder - coated T6 aluminium Approximate Installed Weight: 6.02kg (13.27lbs) The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof. Shipping Dimensions: Width: 115mm (5'') Length: 1460mm (57'') Height: 145mm (6'') Shipping Weight: Weight: 6.02kg (13lbs)

Roof Load Bar Set 1345mm(W)
