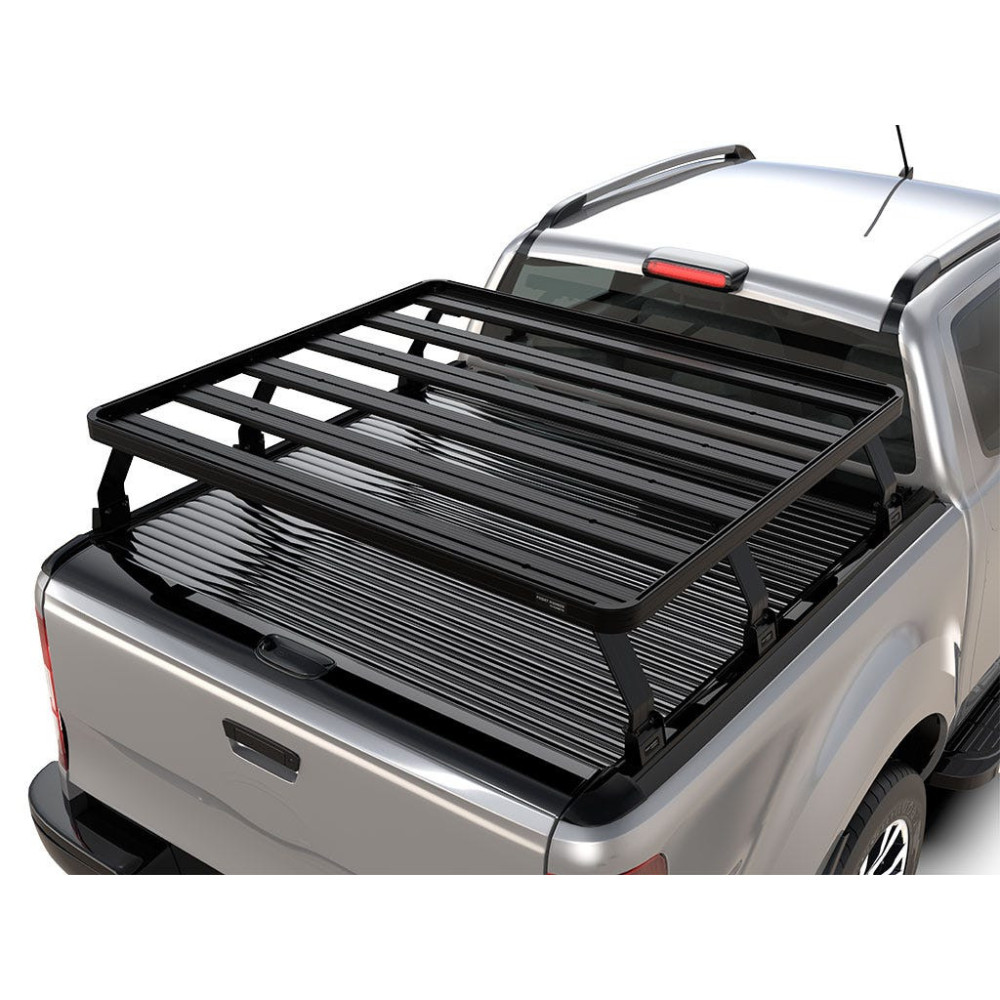

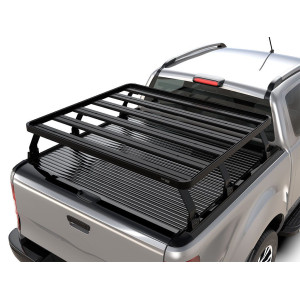

This kit creates a full-size rack that sits above your Pickup Truck's load bed when fitted with a Roll Top Cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1762mm) and 6 Pickup Roll Top Leg Mounts that fit into the existing factory/OEM tracks in your Roll Top Cover. All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. All Front Runner Dometic racks are backed by a 5?year warranty*Note: If your Roll Top extrusion has a 6mm (0.24'') to 7mm (0.28'') slot opening, you may need RRAC962 for installation. * Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

Conteúdo

KRRT028T - Pickup Roll Top Slimline II Load Bed Rack Kit / 1475(W) x 1762(L) / Tall - by Front Runner Consisting of: 3 x LASS033 - Pick Up Roll Top Leg Mount / Medium (Pair)1 x RRSTM09 - Slimline II Tray - 1475mm(W) X 1762mm(L) - by Front Runner Material Used:Black epoxy powder-coated T6 aluminiumHigh strength steel Approximate Installed Weight: 35.4kg (78.0lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts. To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above. If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters. If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof. Shipping Dimensions:Width: 450mm (18.0'')Length: 1730mm (68.0'')Height: 240mm (9.0'') Shipping Weight:36.4kg (80.0lbs)
