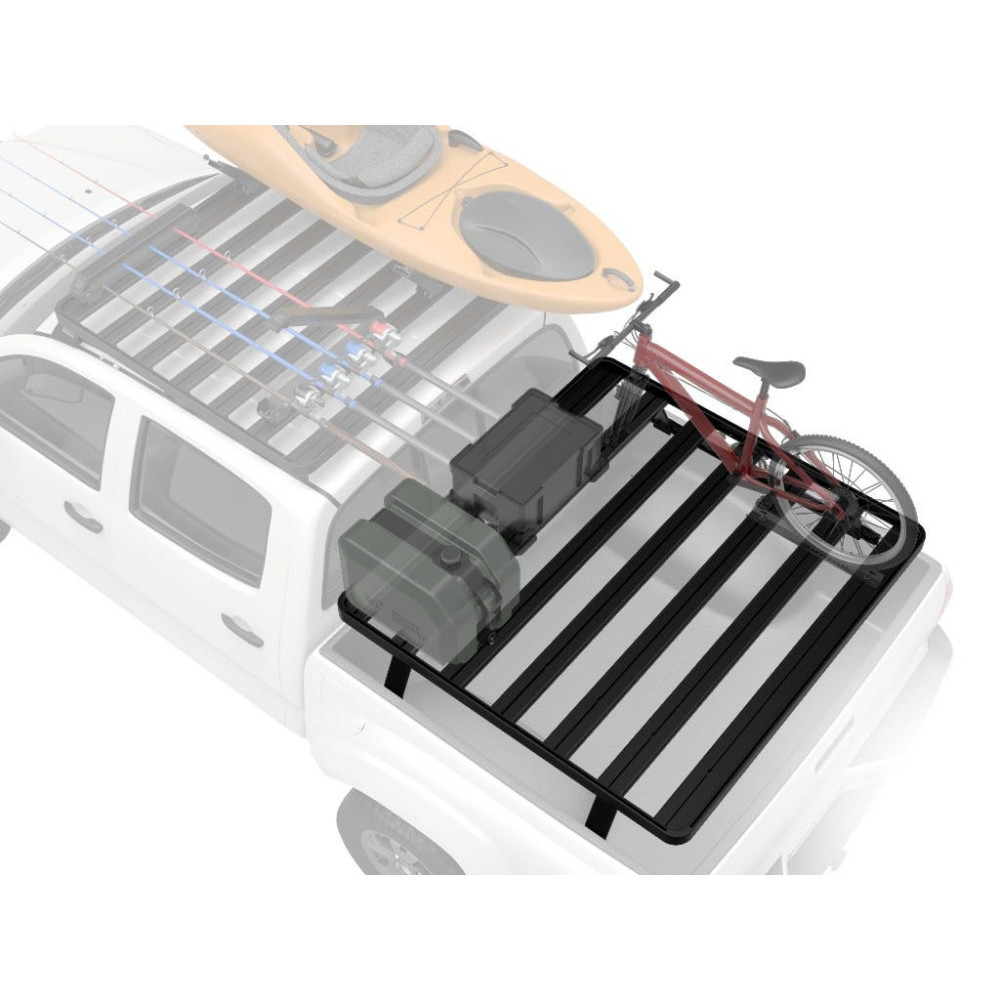

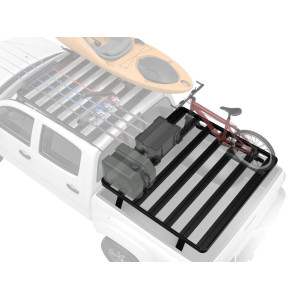

This Pickup Load Bed kit contains the Slimline II tray (1345mm x 1358mm), (2) Load Bed Tracks and (4) Load Bed Legs that fit into the Tracks.This rack fits a load bed width of 1405mm - 1494mm (55-58'') and length of 1270mm - 1550mm (50-61'').This kit creates a full size rack that is fitted above a pickup truck load bed. Drilling is required for installation.This kit creates a full size rack that is fitted above a pick-up truck load bed.See the track and leg installation instructions in the DOWNLOADS tab for further details.For further information on installation, please see the fitment instructions in the INSTALL tab. * Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

Conteúdo

KRLB007T - Pickup Truck Slimline II Load Bed Kit / 1345(W) x 1358(L) - by Front Runner Consisting of: 2 x LASS026 - Universal Load Bed Leg / Tall (Pair) - by Front Runner 1 x RRSTG07 - Slimline II Tray - 1345mm(W) X 1358mm(L) - by Front Runner 1 x TRBU001 - Pickup Load Bed Tracks / 1000mm(L) - by Front Runner   Material used: Black epoxy powder-coated T6 aluminium High strength steel Approximate Installed Weight 25kg (55lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts. To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.   Shipping Dimensions: Width 450mm (18'')Length 1615mm (64'')Height 140mm (6'')   Shipping Weight: Weight 29.0kg (63.8lbs)
