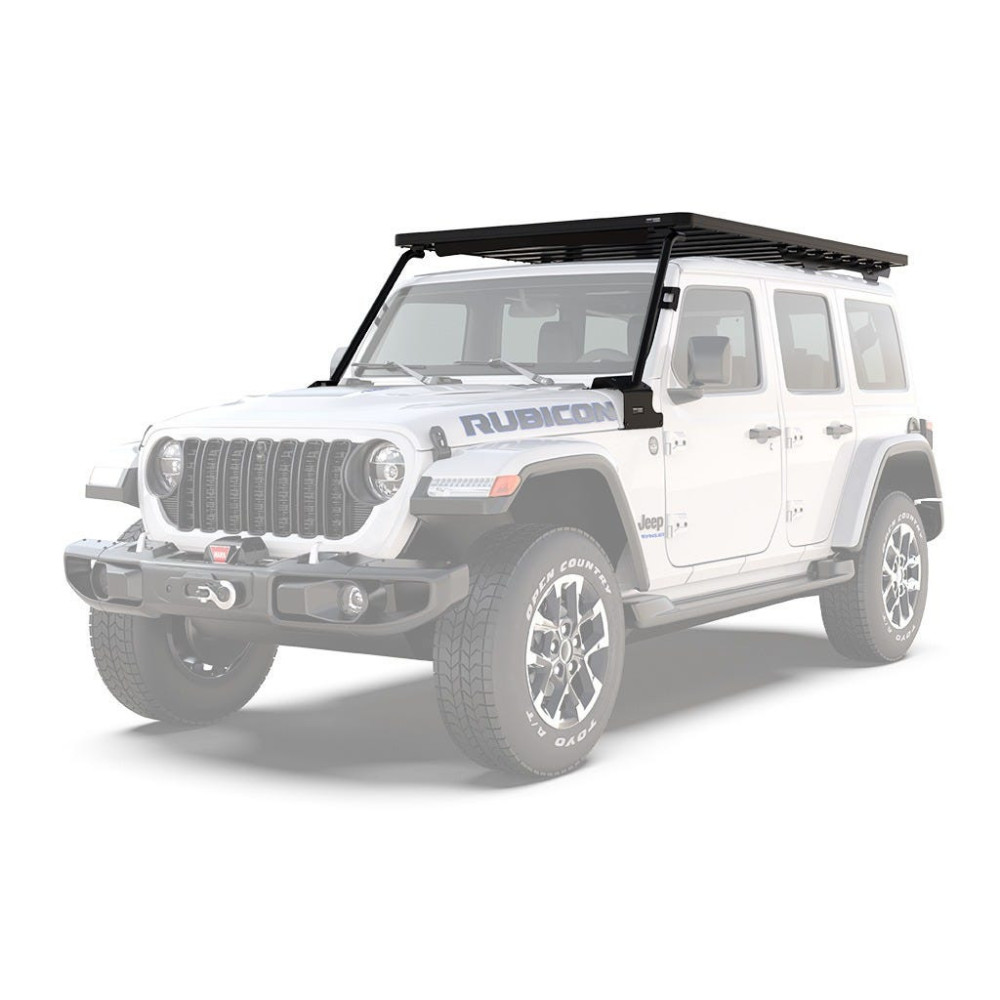

This Slimline II rack kit contains all the components needed to mount the Slimline II cargo carrying rack to a Jeep Wrangler JL 392 Diesel models including the Slimline II Tray (1425mm x 2368mm), the Jeep Extreme Mounting System, and a Wind Deflector. Drilling is required for installation. All Front Runner Dometic Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. All Front Runner Dometic Racks are backed by a Limited Lifetime Warranty* For further information on installation, please see the fitment instructions in the INSTALL tab. The Jeep Extreme mounting system bolts to the roll bar with middle and rear brackets. This unobtrusive, high-performance, nearly indestructible mounting solution allows you to quickly remove the Freedom Panels and works with the hardtop or with no roof at all. Freedom Panels can be quickly and easily removed with the rack in place. The cargo weight is evenly distributed across the roll bars and body of the jeep, placing zero weight on the hardtop itself. Note: Snorkels are not compatible with the Front Bar Roof Rack Mount in this kit.Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Dometic Roof Rack or Load Bar kit.

Conteúdo

KRJW038T - Jeep Wrangler JL 4 Door Mojave/392/2.2L Diesel (2018-Current) Extreme Slimline II Roof Rack Kit Consisting of: 1x FAJL002 - Jeep Wrangler JL (2018-Curr) Foot Rails1x FAJL003 - Jeep Wrangler JL (2018-Curr) Inner Brackets1x FAJL011 - Jeep Wrangler JL (18-Curr)Front Bar RRack Mount1x RRSTJ12 - SLII Tray - 1425mm(W)X2368mm(L)Material Used:Black epoxy powder - coated T6 aluminiumHigh strength steelApproximate Installed Weight: 55kg (121.25lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.Shipping Dimensions:Width: 505mm (20'')Length: 1720mm (68'')Height: 345mm (14'')Shipping Weight:Weight: 55kg (121lbs)
