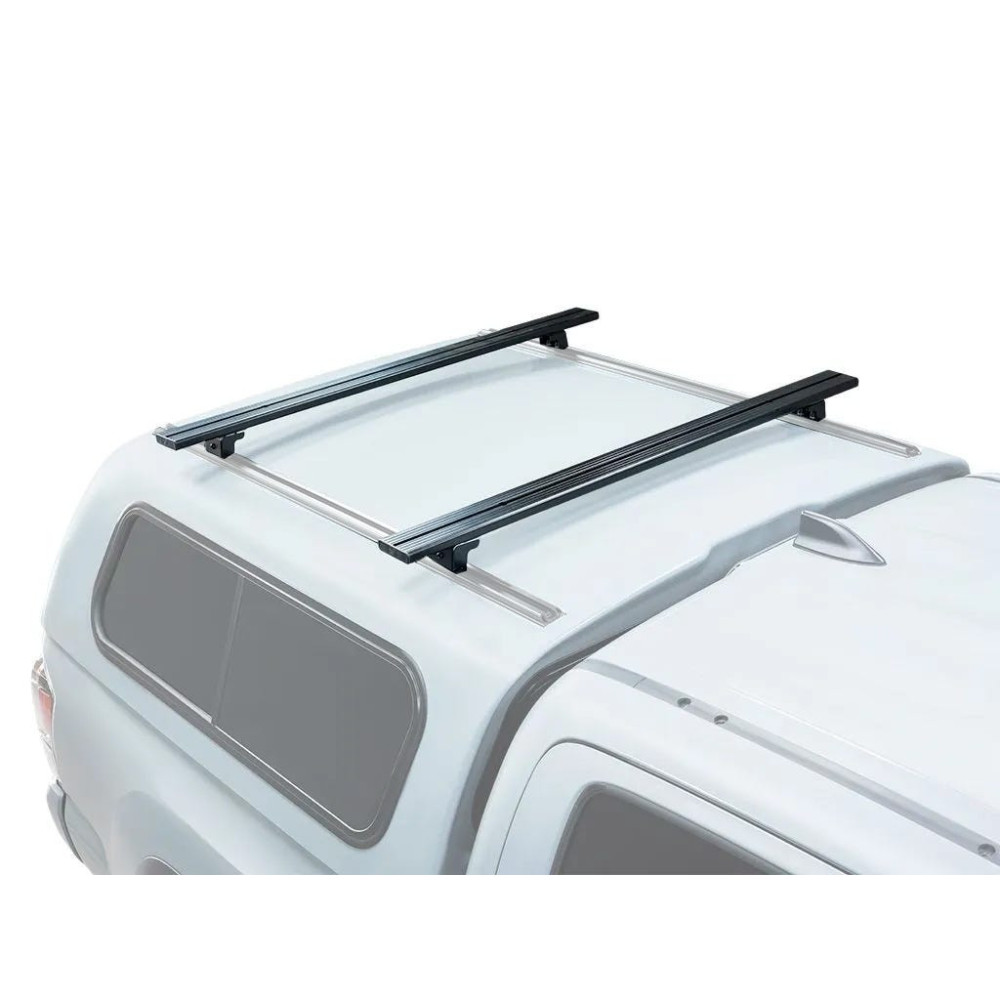

Canopy Load Bar Kit / 1165mm (W)

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 40mm Feet, 2 1165mm Load Bars, 2 1150mm Canopy Tracks, and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle.

KRCA007 - Canopy Load Bar Kit / 1165mm (W) - by Front Runner Consisting of:2 x FASS024 - Foot Set / 50mm-60mm - by Front Runner 1 x LBSK013 - Load Bar Pair 1165mm(W) - by Front Runner 1 x TRCA003 - Canopy Tracks / 1150mm(L) - by Front Runner Material used:Black epoxy powder-coated T6 aluminium High strength steelApproximate Installed Weight 7kg (14lbs)The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot or Grab-On Foot Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.Shipping Dimensions:Width245mm (10)Length1290mm (51)Height 115mm (5)Shipping Weight:Weight7.6kg (16.8lbs)

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 40mm Feet, 2 1165mm Load Bars, 2 1150mm Canopy Tracks, and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle. You may not have the need for a full roof rack and find that you can get by using a set of Front Runner Load Bars.These Load Bars are mounted to the vehicle’s roof via a set of supplied Tracks and Track Mounted Feet.Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack.Made from stainless steel and a durable, weather resistant black powder-coated aluminum.Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle. Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly. For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries. * Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.
